Manufacture

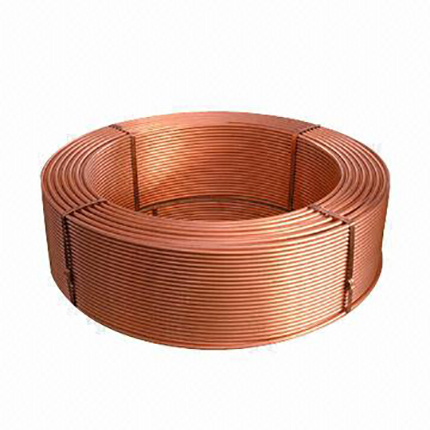

Tube Shape Applicable Diameters Mm (Inch) Common Uses Smooth 12.70 mm (1/2) 9.52 mm (3/8) 7mm 5mm Standard in all coils Rifled 12.70 mm (1/2) 9.52 mm (3/8) 7mm 5mm Condensers and evaporators for increased capacities...

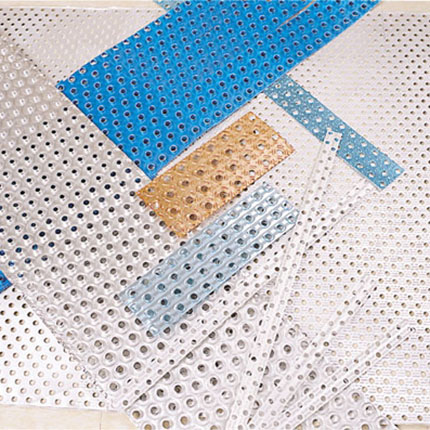

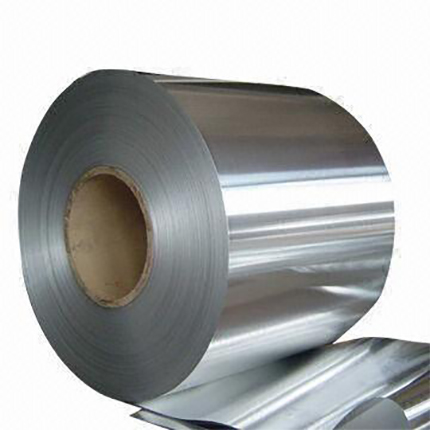

Fin type Characteristics Common Applications Natural Aluminum Natural aluminum is the most common and cost effective fin material. It exhibits good endurance under normal environmental conditions. Residential applications (both indoors and...
Fin Pattern corrugation Characteristics Common Uses Louvered Louvered fins increase the heat-transfer capacity by creating air turbulence which reduces the boundary layer on the fins surface, but at a cost of increased air-pressure drop acr...

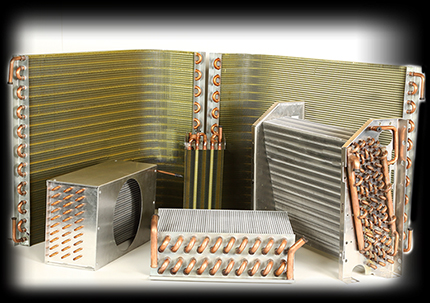

Production Capabilities: We offer one of the widest ranges of tube patterns in the industry TUBE O.D. FIN DIES TUBE PATTERN FIN SURFACES FPI RANGE 5mm 519.511.6mm Staggered Flat/ Louvered 10-20 7mm 72112.7mm Staggered Flat/ Louvered 10-20 7...
Flow chart...

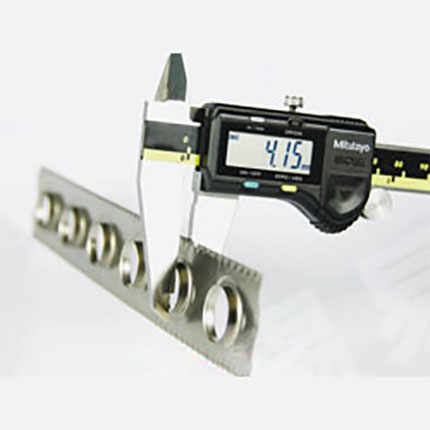

HIGH QUALITY Quality Control via continuous production monitoring combined with the use of only the highest quality materials allows us to provide you with a coil that will give long and reliable service. Every coil is pressure tested befor...
